Updated 29 October 2007 - Pneumatic parts are discontinued.
 BBB Pnumatic Parts
                                        Click image for full size

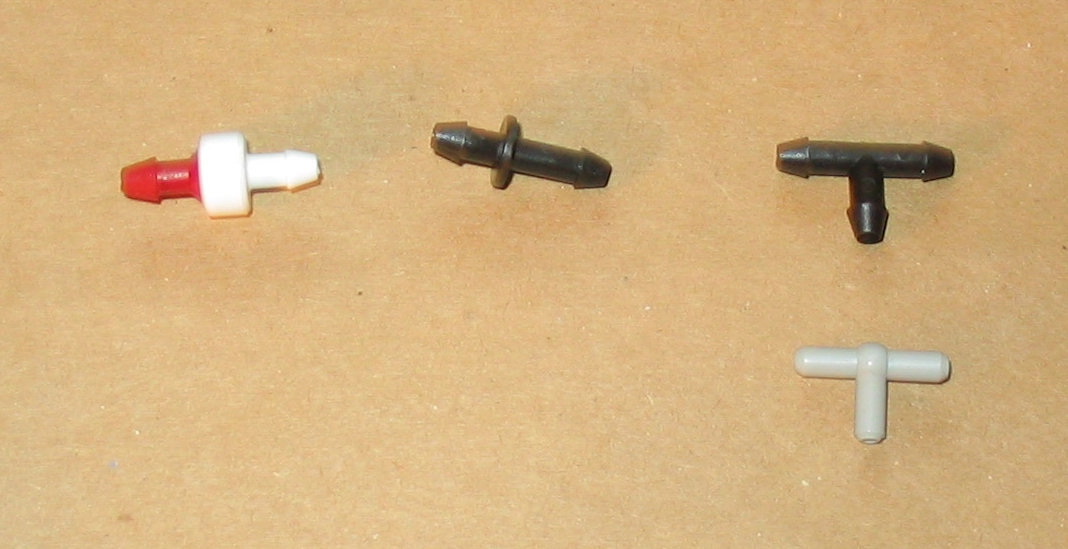

Standard LEGO T fitting shown above for comparison

Why you need these:
Standard LEGO T fittings have an inside diameter (ID) of 1.4mm.  BBB T fittings and Unions have an ID of 2.3mm, but yet still work with standard LEGO tubing.  LEGO tubing has an ID of 2.0mm. Standard LEGO T fittings can restrict air flow and limit the performance of pneumatic circuits.   For best pneumatic performance air lines and fittings should supply enough air for the demand and not restrict the air flow.  This is especially critical for complex pneumatic circuits that have lots of cylinders.

Shopping cart service provided by Paypal
Shipping is $5 per order to anywhere in the world.
Union Union
  • Join two sections of hose
  • 2.3mm Inside Diameter
  • Useful for pneumatic models that need to be disassembled.
  • $1.00 each.
 - Discontinued


T T fitting
  • Improved air flow potential over standard LEGO T fittings
  • 2.3mm Inside Diameter
  • $1.00 each
- Discontinued



One Way Valve One Way Valve

  • Allows air flow in only one direction
  • Useful for building compressors
  • 1.5mm ID
  • also known as a check valve
  • $5.00 each
 - Discontinued




Shopping cart service provided by Paypal
Shipping is $5 per order to anywhere in the world.

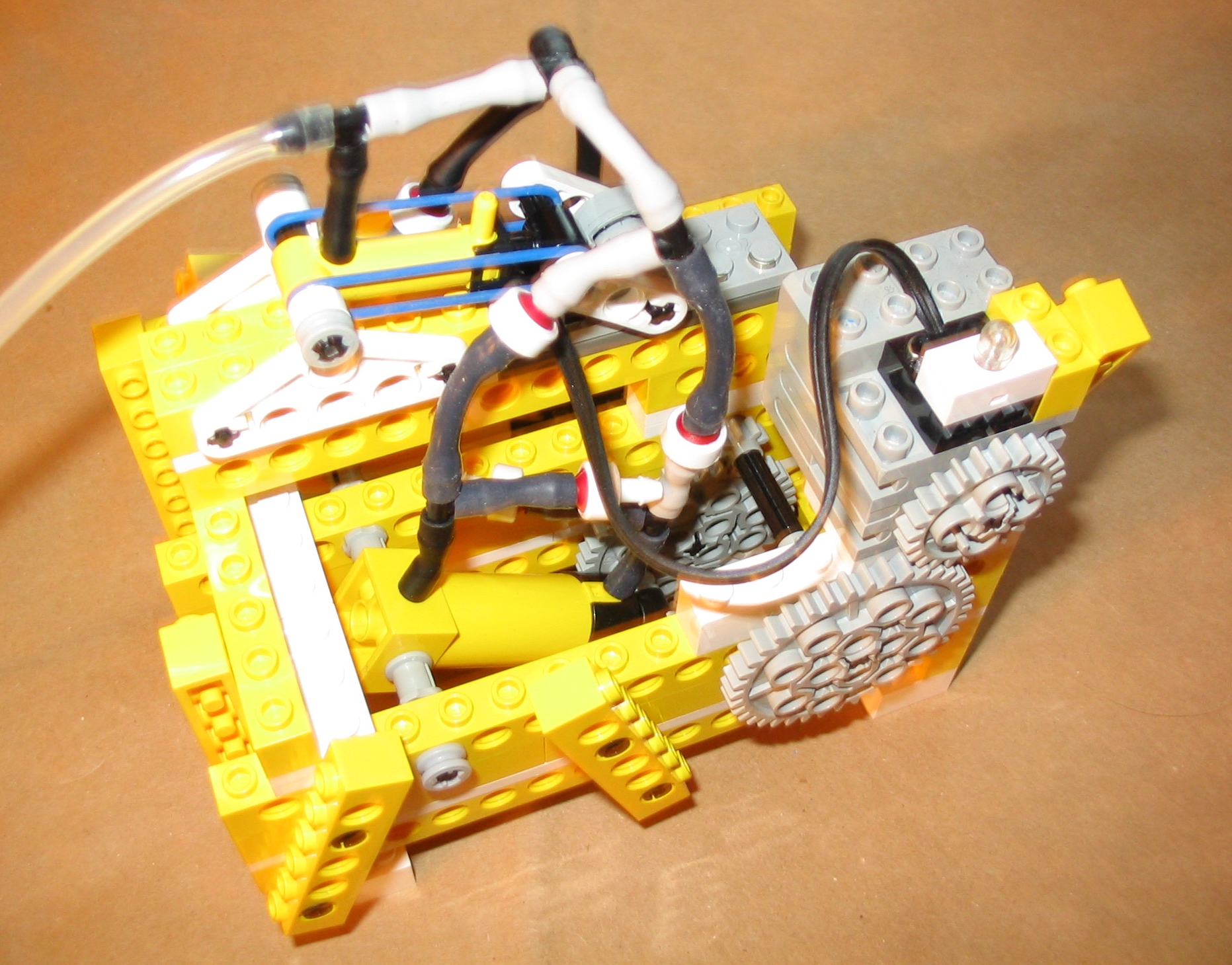

Sample Compressor
Compressor
                                              Click picture for full size image

Sample Compressor
  Uses two standard Pneumatic cylinders to make a two cylinder, double-acting compressor.  Each cycle provides four strokes worth of air.
